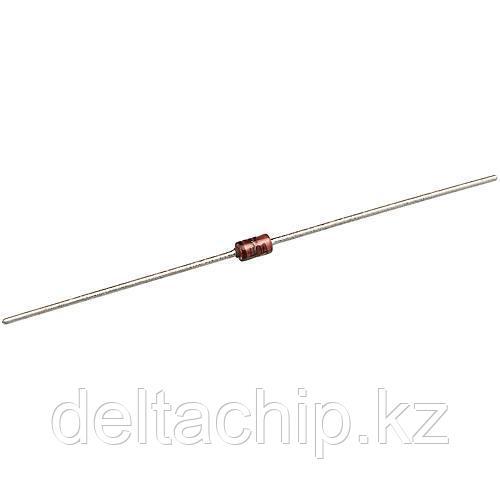

1N4148 Диод выпрямительный 0.15A 100V DO-35

DIODE, 100V, 200MA, DO-35 Diode Configuration Single Repetitive Reverse Voltage Vrrm Max 100V Forward Current If(AV) 200mA Forward Voltage VF Max 1V Reverse Recovery Time trr Max 4ns Forward Surge Current Ifsm Max 1A Operating Temperature Max 175°C Diode Case Style DO-204AH No. of Pins 2Pins Packaging Each Product Range 1N4148 Series Automotive Qualification Standard – SVHC No SVHC (15-Jun-2015) Alternate Case Style SOD-27 Application Code HS Current If @ Vf 10mA Current Ifsm 1A External Diameter 1.85mm External Length / Height 4.25mm Forward Current If Max 10mA Forward Voltage 1V Junction Temperature Tj Max 175°C Operating Temperature Min -65°C Operating Temperature Range -65°C to +175°C Peak Forward Current 300mA Power Dissipation Ptot Max 500mW Reverse Recovery Time trr Typ 4ns
